SR15-2950: High-Precision Hollow-Wrist Robot for Rotary Atomizer Applications

SR15-2950 | Precision in Motion: Advanced Hollow-Wrist Painting Solution

• Advanced Hollow Wrist Design: The specialized Hollow Wrist architecture minimizes singularities and allows internal routing of hoses, preventing cable interference and ensuring clean, stable operation for high-precision tasks.

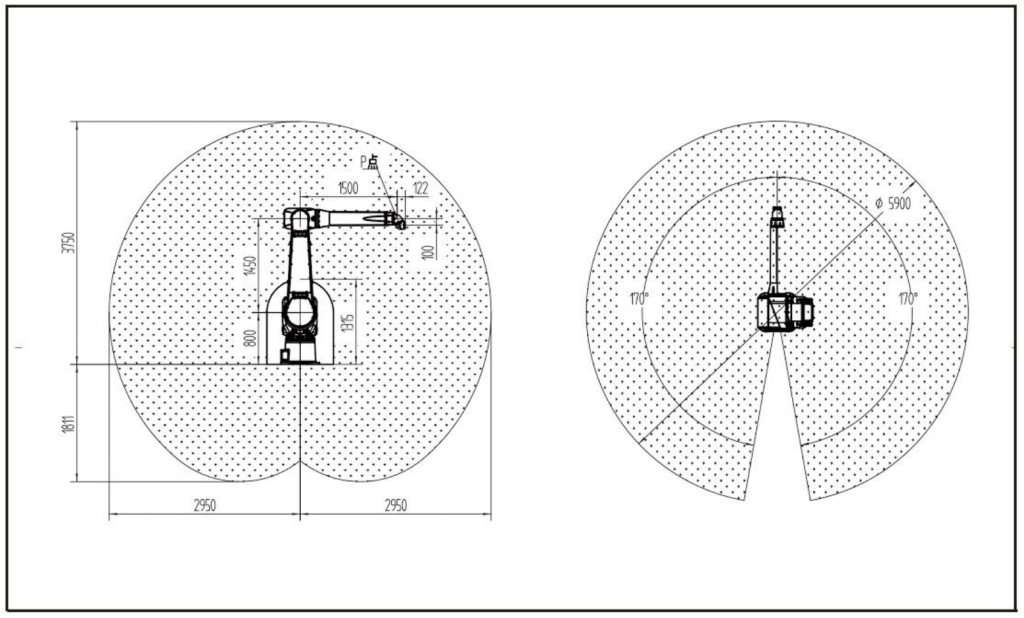

• Unmatched Performance & Rigidity: Built with enhanced structural rigidity, this robot features a 2950mm reach and a 15kg payload, providing the stability required for consistent coating quality.

• Certified Safety & Durability: Fully explosion-proof certified with an IP67-rated wrist, the SR15-2950 is designed to endure long cycles in the most demanding and volatile chemical environments.

• AI-Powered Vision & Path Planning: Equipped with Automated Path Planning technology, the system utilizes 3D cameras to capture point-cloud data in real-time, automatically generating optimized spraying trajectories for planar and curved surfaces.

• Intuitive AR Interaction: Simplifies complex operations through the SmartDraw 3D Vision System and AR Motion-Sync Teaching Pendant, enabling rapid deployment and effortless “lead-through” programming.

• High-End Industrial Applications: Specifically engineered for Rotary Atomizers (Bell Guns) and scenarios requiring extreme film-thickness precision. Ideal for Full-Body Automotive Painting, EV Components, and Large Enclosures.
